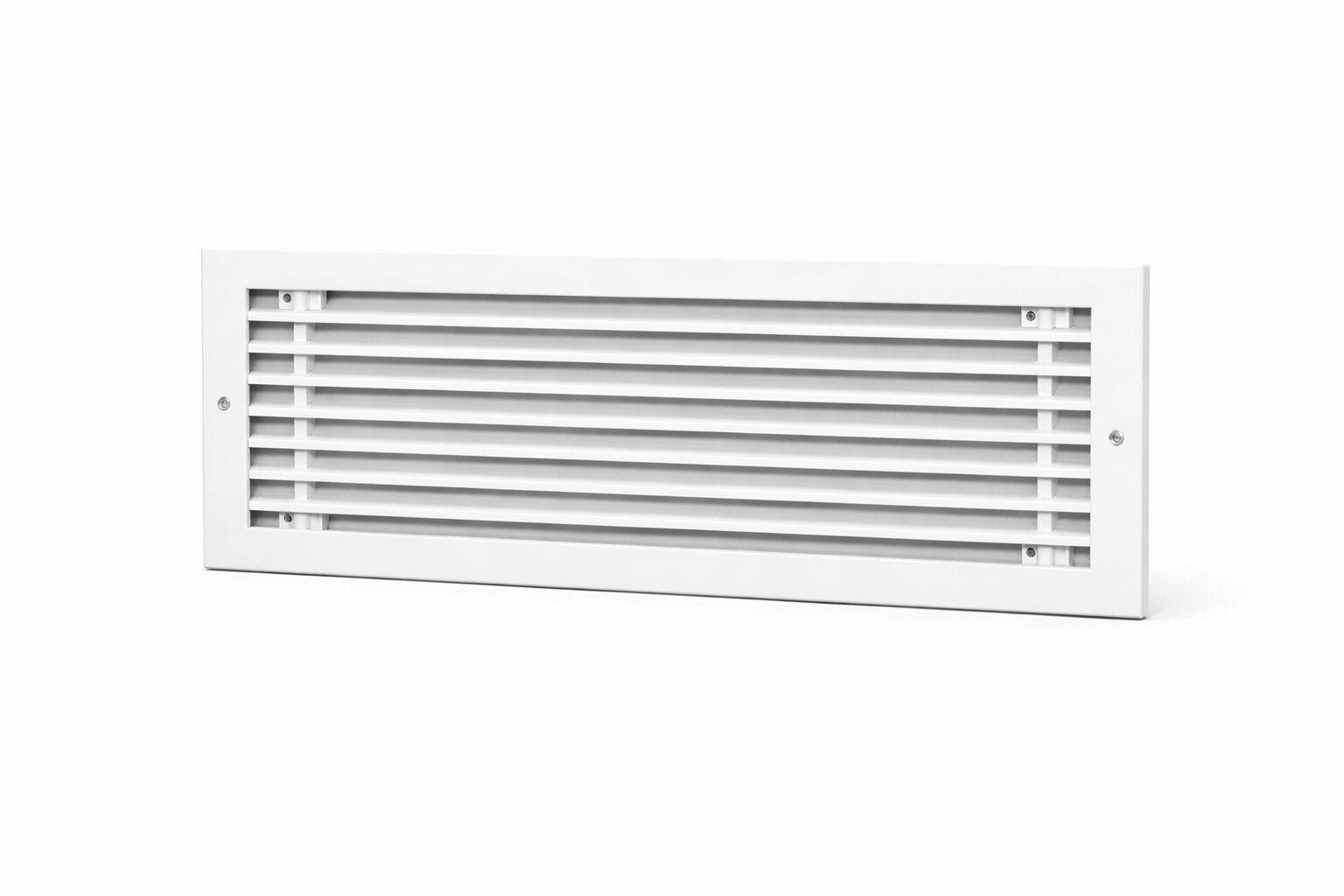

The Linear Fixed Blade Grille is engineered for optimal air distribution and seamless architectural integration in both commercial and residential HVAC systems. Constructed from high-grade extruded aluminum profiles, these grilles offer exceptional durability and a clean, modern aesthetic. They are highly versatile, designed for easy installation in either side walls or ceilings, and perform reliably in both air supply and return applications. With a concealed mounting mechanism and multiple blade angle options, this series provides a flawless finish while meeting precise architectural and airflow requirements.
Material Construction: Manufactured from high-grade extruded aluminum profiles for structural integrity.
System Application: Versatile design suitable for both supply and return air in side wall or ceiling installations.
Profile Dimensions: Features a 5mm front blade thickness alongside a 16mm flange width and depth.
Airflow Control: Available in 0°, 15°, or 30° blade deflection angles to direct air exactly where it is needed.
Mounting System: Utilizes a concealed bracket fixing arrangement to ensure a clean, screw-free visible surface.
Size Range: Highly adaptable sizing, available from compact 100 x 100 mm units up to large 1800 x 600 mm configurations.
Optional Accessories: Can be paired with an opposed blade damper for precise air volume control.
Surface Finish: Comes standard in an off-white finish, with custom color-matching available upon request to suit any interior design.

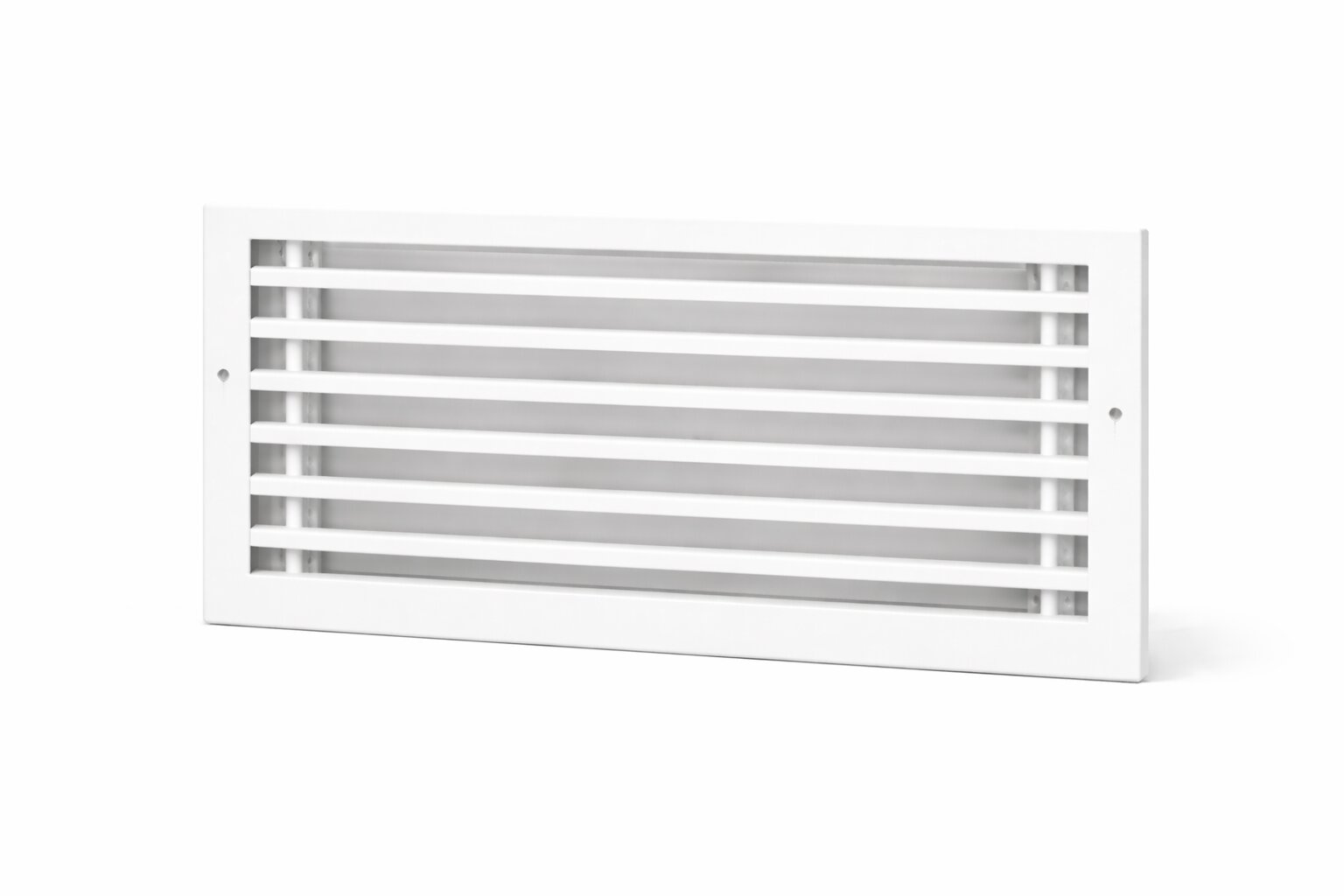

Designed specifically for demanding exhaust air applications, the High Flow Grille offers superior ventilation performance without compromising on aesthetics. Crafted from high-grade extruded aluminum profiles, this durable grille is engineered to handle high-volume airflow efficiently while maintaining a sleek, professional appearance. With its concealed bracket mounting and specialized blade architecture, it provides a seamless architectural finish perfect for commercial and industrial spaces where robust, reliable air extraction is required.
Material Construction: Built from high-grade extruded aluminum profiles for maximum durability and longevity.
System Application: Engineered specifically for high-flow exhaust air systems.
Blade Architecture: Features an 18 mm blade pitch and a 5 mm front blade thickness for optimal exhaust efficiency.
Profile Dimensions: Designed with a 16 mm flange width and depth.
Airflow Control: Available with 0° and 15° blade deflection angles to suit specific ventilation needs.
Mounting System: Utilizes a concealed bracket fixing arrangement to ensure a clean, screw-free, and aesthetically pleasing installation.
Size Range: Highly adaptable sizing, available from compact 100 x 100 mm units up to large 1800 x 600 mm configurations.
Optional Accessories: Can be equipped with an opposed blade damper for precise exhaust volume regulation.
Surface Finish: Comes standard in an off-white finish, with custom colors available on demand to match your project’s interior design.

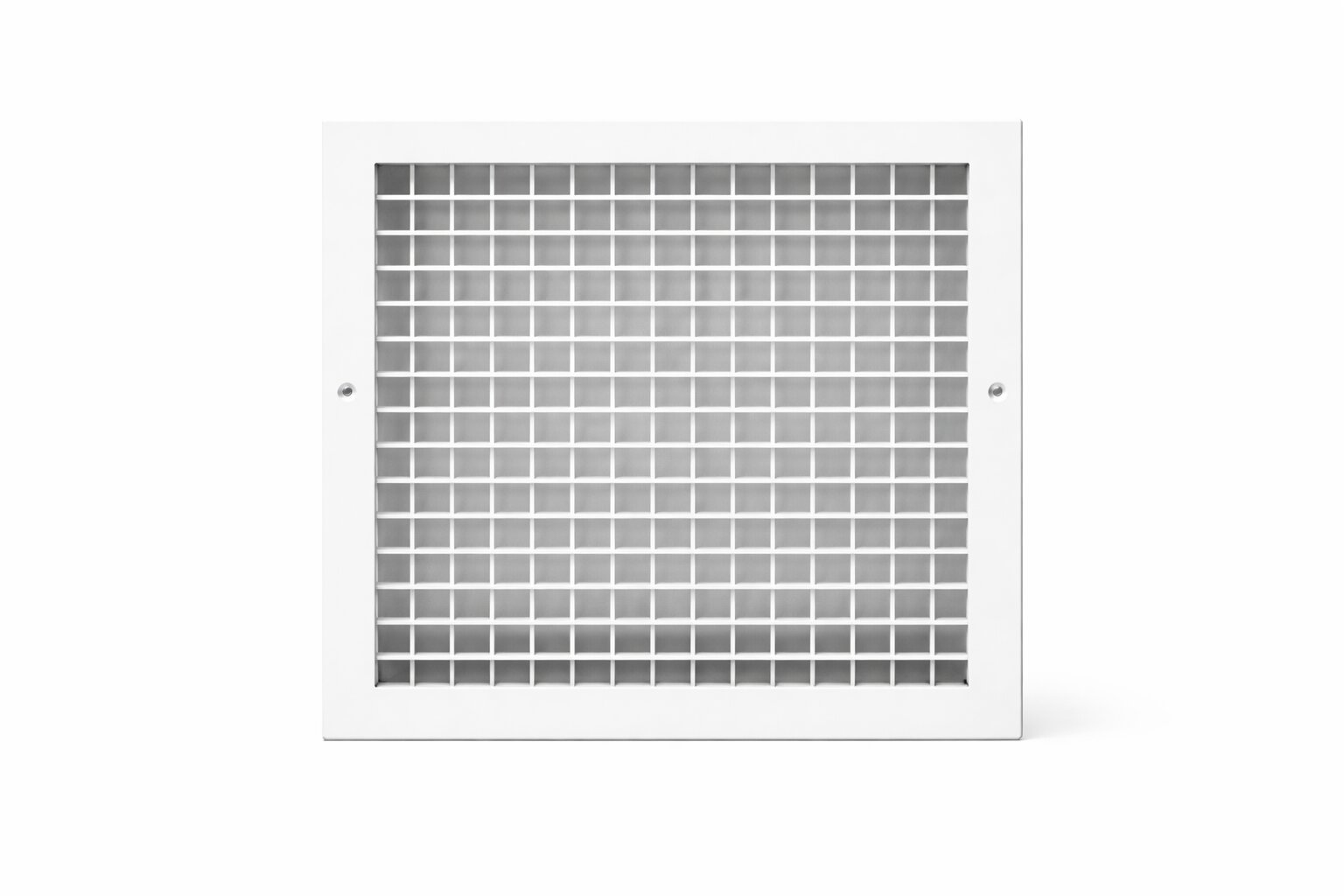

The Double Deflection Adjustable Blade Grille is engineered for maximum directional control in complex HVAC systems. Manufactured from high-grade extruded aluminum profiles, this premium grille features two sets of manually adjustable blades—both horizontal and vertical—allowing for precise, multi-directional airflow management. Ideal for both supply and return air applications, its robust construction ensures long-lasting performance while offering flexible installation options to seamlessly integrate into various commercial and industrial environments.
Material Construction: Manufactured from high-grade extruded aluminum profiles for lasting durability.
System Application: Highly effective for both supply and return air distribution systems.
Blade Architecture: Features manually adjustable horizontal and vertical blades for comprehensive, multi-directional airflow control.
Profile Dimensions: Built with a sturdy 25 mm frame width and a 48 mm frame depth.
Mounting System: Offers flexible installation with a choice between standard front screw fixing or a clean, concealed bracket arrangement.
Size Range: Accommodates a wide variety of duct sizes, ranging from compact 100 x 100 mm units up to large 1200 x 1200 mm configurations.
Optional Accessories: Can be seamlessly paired with an opposed blade damper to accurately regulate air volume.
Surface Finish: Comes standard in an off-white finish, with custom colors available on demand to match your architectural requirements.

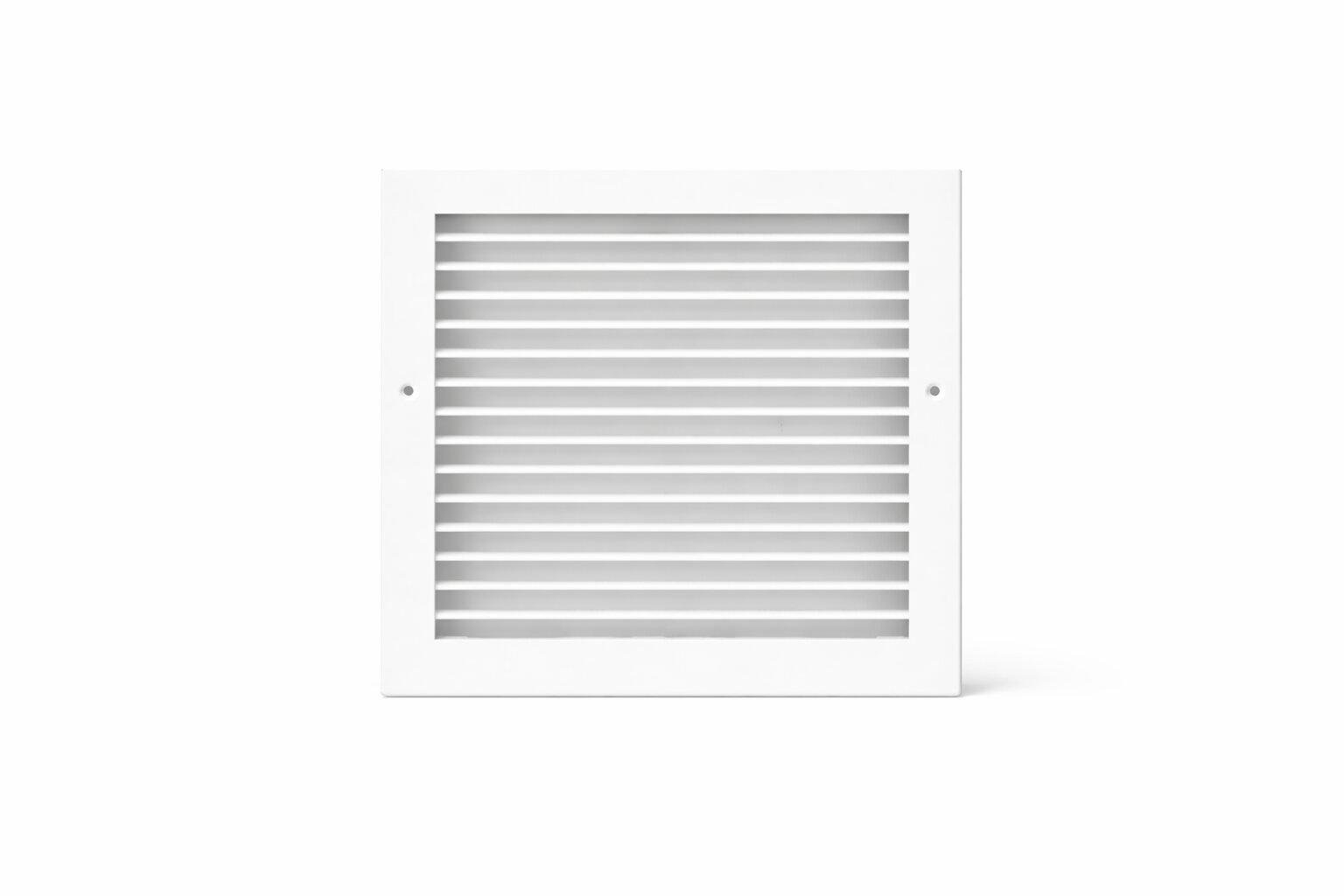

The Single Deflection Adjustable Blade Grille provides reliable and efficient directional airflow control for a wide range of HVAC requirements. Constructed from high-grade extruded aluminum profiles, this grille is designed for durability and a sleek finish in both supply and return air applications. Featuring a single set of manually adjustable blades—available in either horizontal or vertical orientations—it allows for targeted air distribution to suit the specific needs of any room. With versatile mounting options and a robust frame, it seamlessly integrates into diverse commercial and industrial spaces.
Material Construction: Manufactured from high-grade extruded aluminum profiles to ensure lasting durability and structural integrity.
System Application: Highly versatile design engineered for both supply and return air distribution systems.
Blade Architecture: Features manually adjustable blades (horizontal or vertical) for precise, one-directional airflow control.
Profile Dimensions: Built with a sturdy 25 mm frame width and a streamlined 33 mm frame depth.
Mounting System: Offers flexible installation with a choice between standard front screw fixing or a clean, concealed bracket arrangement.
Size Range: Accommodates a wide variety of duct sizes, ranging from compact 100 x 100 mm units up to large 1200 x 1200 mm configurations.
Optional Accessories: Can be easily paired with an opposed blade damper to accurately regulate air volume.
Surface Finish: Comes standard in an off-white finish, with custom colors available on demand to match your architectural requirements.

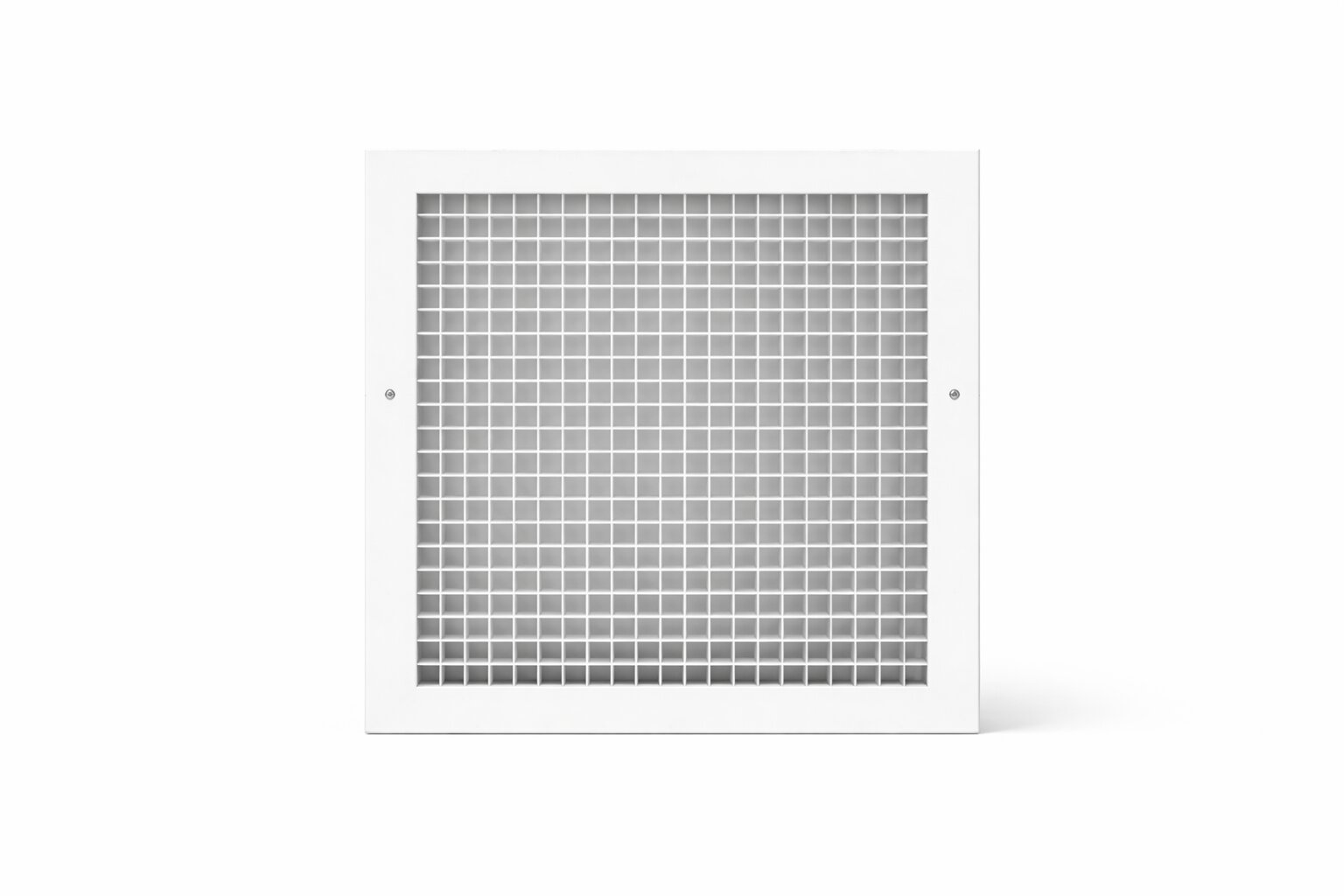

The Egg Crate Grille is purpose-built to deliver maximum free area, making it an exceptional choice for high-volume return air and exhaust applications. Crafted from a combination of high-grade extruded aluminum profiles and durable aluminum sheet, this grille offers a lightweight yet rigid structure. Its signature grid-like core design ensures optimal airflow efficiency with minimal pressure drop, all while providing a clean, uniform architectural appearance that fits perfectly into modern commercial ceiling grids and wall installations.
Material Construction: Manufactured from a robust combination of high-grade extruded aluminum profiles and aluminum sheet.
System Application: Specifically engineered for high-efficiency return air extraction.
Core Design: Features a precise 12.5 x 12.5 mm square core pitch to maximize free area and minimize airflow resistance.
Profile Dimensions: Built with a standard 25 mm flange width and a 33 mm frame depth.
Size Range: Available in standard dimensions ranging from a compact 150 x 150 mm up to a ceiling-grid-friendly 595 x 595 mm.
Mounting System: Comes standard with a reliable front screw fixing arrangement for secure and straightforward installation.
Optional Accessories: Can be seamlessly paired with an opposed blade damper to accurately regulate air volume.
Surface Finish: Supplied in a standard off-white finish, with custom colors available on demand to match your specific interior design.
